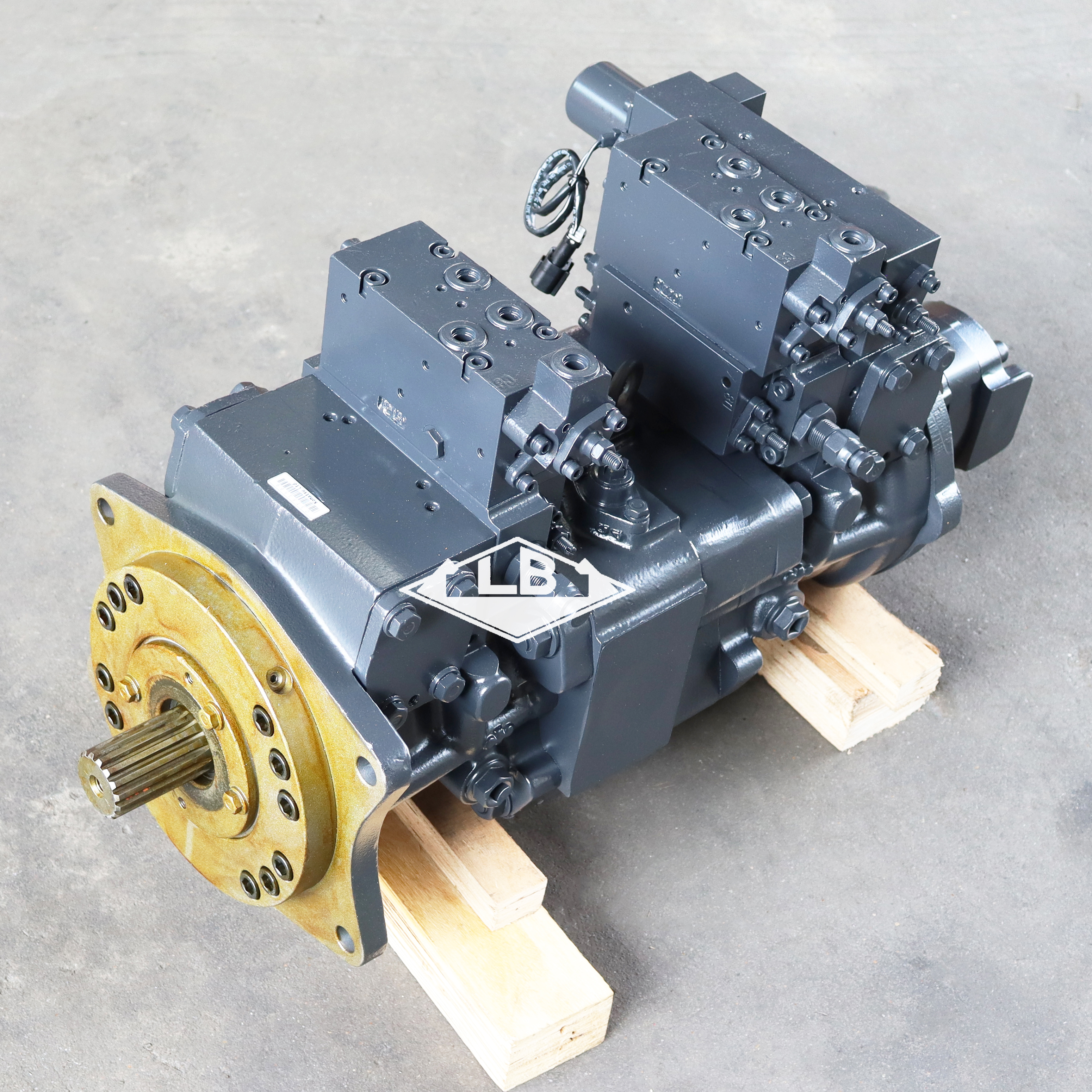

PC1250-8 BOMBA PRINCIPAL 708-2L-00680 708-2L-00681 PC1250-8 BOMBA PRINCIPAL HIDRÁULIC

Status de disponibilidade:
Quantidade:
Inquérito Adicionar a cesta

Parâmetros do produto
P Nome da arte

PC1250-8 Bomba principal
Equipamento Aplique à escavadeira Komatsu
Parte não. 708-2L-00680 708-2L-00681
dentes do eixo do motor
Condição do item Novo
Logotipo LIBRA
Peso bruto -
MOQ 1 pc


Descrição do produto

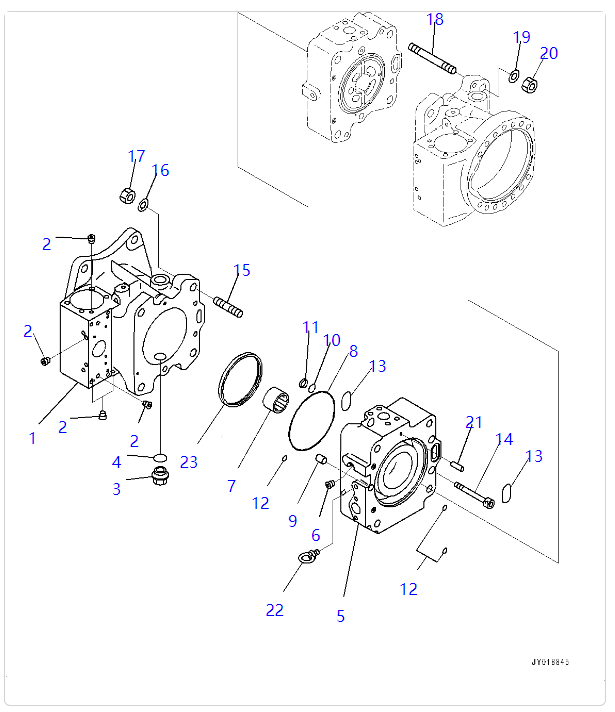

PC1250-8 (6) PC1250-8 (8) PC1250-8 (4) PC1250-8 (2) PC1250-8 (10) PC1250-8 (1)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.

708-2L-04950 [1] Conjunto de casos, Front Komatsu 23.802 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 3.
3. 07044-12412 [1] Plugue komatsu 0,09 kg.

[ 'SN: 30158-up '] Analogs: [ '0704402412 ', 'r0704412412 ']
4. 07002-62434 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up '] Analogs: [ '7081W28910 ']

708-2L-05970 [1] Subsembly de tampa final Komatsu China

[ 'SN: 30229-UP ', 'SCC: C2 '] | $ 8.
7. 708-2L-32260 [1] Com Komatsu 0,2 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L22260 ']
8. 07000-B2135 [1] O-ring Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 6130-21-1910 [1] Pin, Dowel Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 07000-B2012 [1] O-ring Komatsu China 0,001 kg.

[ 'SN: 30229-UP ', 'SCC: C2 ']
11. 708-2L-41270 [1] Anel, backup de Komatsu China

[ 'SN: 30229-UP ', 'SCC: C2 ']
12. 07000-B1009 [3] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23910 ']
13. 07000-B3032 [2] O-ring Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 01252-61080 [2] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 01141-81620 [4] Stud Komatsu 0,232 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 01643-31645 [4] Lavadora Komatsu 0,072 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802170005 ', '0164301645 ']
17. 01582-01613 [4] Nut Komatsu 0,029 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0150031613 ']
18. 01140-81645 [4] Stud Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0114061645 ']
21. 720-68-19610 [1] Pin Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 04530-11018 [1] Parafuso, olho komatsu 0,079 kg.

[ 'SN: 30158-up ']
23. 708-25-13630 [1] Anel komatsu 0,13 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

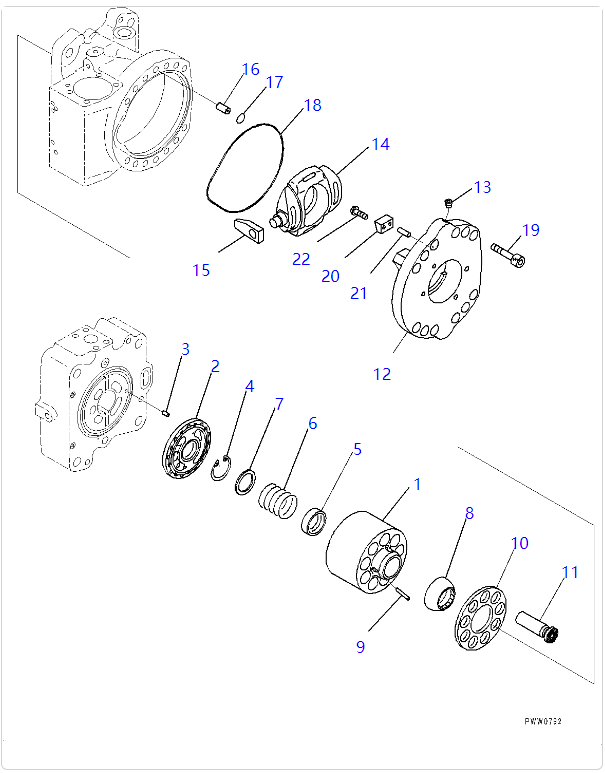

PC1250-8 (2)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.
1. 708-2L-22430 [1] Eixo, Komatsu frontal 3.111 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
2. 708-2L-32150 [1] Com Komatsu 0,6 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082E12152 ', '7082L22150 ', '7082512731 ']
3. 708-2E-05040 [1] Lavadora kit komatsu 0,101 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082E12190 ']
4. 708-25-12790 [1] Toque, Snap Komatsu 0,006 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-25-52861 [1] Selo, petróleo Komatsu China 0,078 kg.

[ 'SN: 30158-UP '] Analogs: [ '7082552860 ', '7067340920 ']
6. 708-25-12812 [1] Habitando Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
7. 07000-A2080 [1] O-ring Komatsu 0,003 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 708-25-05130 [1] Shim Kit Komatsu 0,032 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 01010-80820 [4] Parafuso komatsu 0,013 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801014067 ', '0101050820 ', '801015086 ']
10. 01643-30823 [4] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802070008 ', '802150008 ', '0160510818 ', '0164310823 ', 80817 ', '. '01643A0823 ']

708-2L-04151 [1] Conjunto de blocos, OEM traseiro Komatsu 5,26 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L04050 ', '7082L06370 '] | $ 19.
13. 720-68-19610 [1] Pin Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 04065-04818 [1] Anel, Snap Komatsu OEM 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 708-2L-23131 [1] Seat Komatsu 0,073 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 708-2L-33160 [1] Spring Komatsu 0,12 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23151 ']
17. 708-7L-13140 [1] Seat Komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 708-2L-23351 [1] Guia, retentor, retentor Komatsu OEM 0,14 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
19. 708-2L-23360 [3] Pin Komatsu 0,003 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 708-2L-33340 [1] Retentor, sapato komatsu oem 0,3 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-2L-33310 [9] Pistão Subsembly Komatsu OEM 0,211 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23313 ']
~!phoenix_varIMG141!~

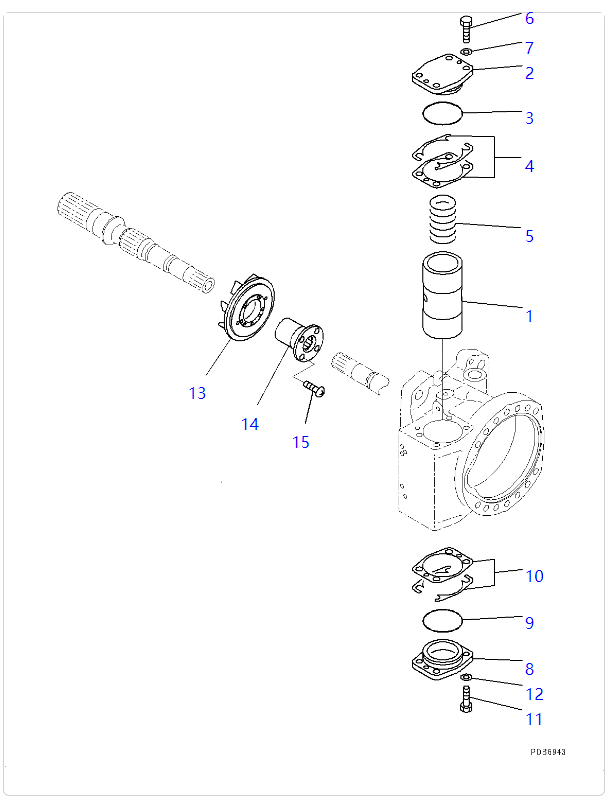

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.

708-2L-04730 [1] Montagem do berço, Komatsu frontal 11,35 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 3.

708-2L-04840 [1] Submontagem do berço, front komatsu 9,15 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
4. 708-2L-23730 [1] Slider Komatsu 0,1 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-25-12330 [1] Komatsu conjunto 0,025 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 07000-B2015 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
7. 708-25-62361 [1] O-ring Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 01252-61230 [12] Bolt, soquete hexagon Komatsu 0,044 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 708-25-14211 [1] Pistão Komatsu 2,31 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-25-14140 [1] Cap Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 07000-B2065 [1] O-ring Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
12. 708-25-05050 [1] Shim Kit Komatsu 0,05 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 708-25-14130 [1] Spring Komatsu 0,25 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 01016-51035 [4] Parafuso komatsu 0,033 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801015111 ', '0101631035 ']
15. 01643-31032 [4] Lavadora Komatsu 0,054 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150510 ', '016431030 ', '0164381032 ', '0164371032 ', '' 01161111120202020311110203111110203111110201103111111102111111110201111111020111110311111110201510110311111031111110211111115111015101151011510115101151010151015110151, ' '0164321032 ', '0164301032 ', '6127212530 ', '802170002 ', 'r016431032 ']
16. 708-25-14150 [1] Cap Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
PC1250-8 (4)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 1.

708-2L-04960 [1] Conjunto de casos, Komatsu traseiro 19.002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.
3. 07044-12412 [1] Plugue komatsu 0,09 kg.

[ 'SN: 30158-up '] Analogs: [ '0704402412 ', 'r0704412412 ']
4. 07002-62434 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up '] Analogs: [ '7081W28910 ']
5. 708-2L-21970 [1] Cap, final Komatsu China

[ 'SN: 30229-UP ', 'SCC: C2 ']
6. 708-2L-32260 [1] Com Komatsu 0,2 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L22260 ']
7. 07000-B2135 [1] O-ring Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 6130-21-1910 [1] Pin, Dowel Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 07000-B2012 [1] O-ring Komatsu China 0,001 kg.

[ 'SN: 30229-UP ', 'SCC: C2 ']
10. 708-2L-41270 [1] Anel, backup de Komatsu China

[ 'SN: 30229-UP ', 'SCC: C2 ']
11. 07000-B1009 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23910 ']
12. 07000-B5165 [1] O-ring Komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 07000-B3032 [1] O-ring Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 01252-61080 [4] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 04530-11018 [1] Parafuso, olho komatsu 0,079 kg.

[ 'SN: 30158-up ']
16. 708-25-13630 [1] Anel komatsu 0,13 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
17. 708-2L-22450 [1] Eixo, Komatsu traseiro China

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 708-2L-32150 [1] Com Komatsu 0,6 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082E12152 ', '7082L22150 ', '7082512731 ']
19. 708-2E-05040 [1] Lavadora kit komatsu 0,101 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082E12190 ']
20. 708-25-12790 [1] Toque, Snap Komatsu 0,006 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-25-05021 [1] Shim Kit Komatsu 0,013 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 708-25-12950 [2] Placa Komatsu 0,006 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
23. 01252-61040 [1] Bolt, soquete hexagon Komatsu 0,037 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125271040 ']
24. 01643-31032 [1] Lavadora Komatsu 0,054 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150510 ', '016431030 ', '0164381032 ', '0164371032 ', '' 01161111120202020311110203111110203111110201103111111102111111110201111111020111110311111110201510110311111031111110211111115111015101151011510115101151010151015110151, ' '0164321032 ', '0164301032 ', '6127212530 ', '802170002 ', 'r016431032 ']
25. 01252-31016 [1] Bolt Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 708-25-05130 [1] Shim Kit Komatsu 0,032 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

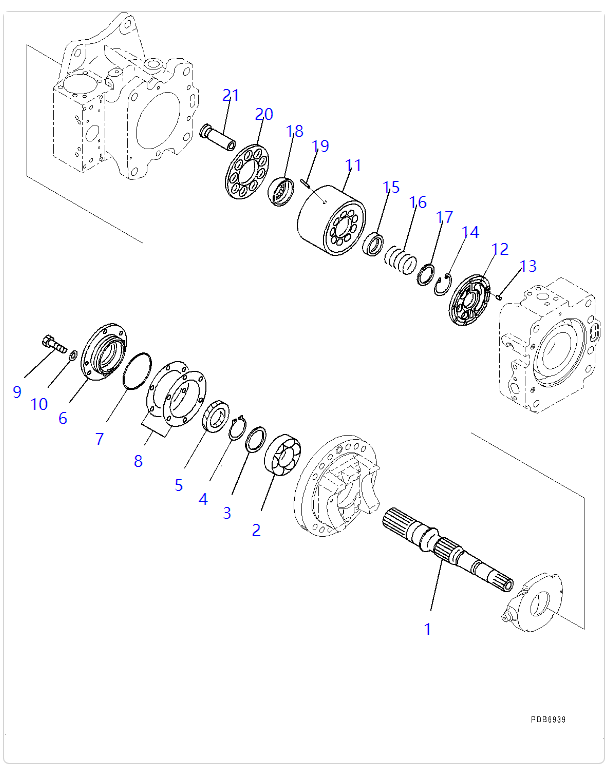

PC1250-8 (5)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.

708-2L-04141 [1] Montagem do bloco, Front Komatsu 5.332 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L04040 ', '7082L06360 '] | $ 3.
3. 720-68-19610 [1] Pin Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 04065-04818 [1] Anel, Snap Komatsu OEM 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-2L-23131 [1] Seat Komatsu 0,073 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 708-2L-33160 [1] Spring Komatsu 0,12 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23151 ']
7. 708-7L-13140 [1] Seat Komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 708-2L-23351 [1] Guia, retentor, retentor Komatsu OEM 0,14 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 708-2L-23360 [3] Pin Komatsu 0,003 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-2L-33340 [1] Retentor, sapato komatsu oem 0,3 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 708-2L-33310 [9] Pistão Subsembly Komatsu OEM 0,211 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L23313 ']

708-2L-04430 [1] Assembléia do berço, Komatsu traseiro China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 15.

708-2L-04650 [1] Submontagem do berço, Komatsu China traseira

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 16.
15. 708-2L-23730 [1] Slider Komatsu 0,1 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 708-25-12330 [1] Komatsu conjunto 0,025 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
17. 07000-B2015 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 708-25-62361 [1] O-ring Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
19. 01252-61230 [12] Bolt, soquete hexagon Komatsu 0,044 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 708-2L-23790 [1] Stopper Komatsu 0,08 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 04020-00616 [1] Pin, Dowel Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 706-75-42270 [1] Enfute komatsu 0,003 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

PC1250-8 (6)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-2L-01680 [1] Bombear submontagem Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 2.
1. 708-25-14112 [1] Pistão Komatsu 2,4 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
2. 708-25-14140 [1] Cap Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
3. 07000-B2065 [1] O-ring Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 708-25-05050 [1] Shim Kit Komatsu 0,05 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-25-14130 [1] Spring Komatsu 0,25 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 01016-51035 [4] Parafuso komatsu 0,033 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801015111 ', '0101631035 ']
7. 01643-31032 [4] Lavadora Komatsu 0,054 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150510 ', '016431030 ', '0164381032 ', '0164371032 ', '' 01161111120202020311110203111110203111110201103111111102111111110201111111020111110311111110201510110311111031111110211111115111015101151011510115101151010151015110151, ' '0164321032 ', '0164301032 ', '6127212530 ', '802170002 ', 'r016431032 ']
8. 708-25-14150 [1] Cap Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 708-25-12542 [1] Impulsor Komatsu 0,225 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 708-25-52550 [1] Acoplando Komatsu 0,51 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 706-73-42270 [4] Enfute komatsu 0,003 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

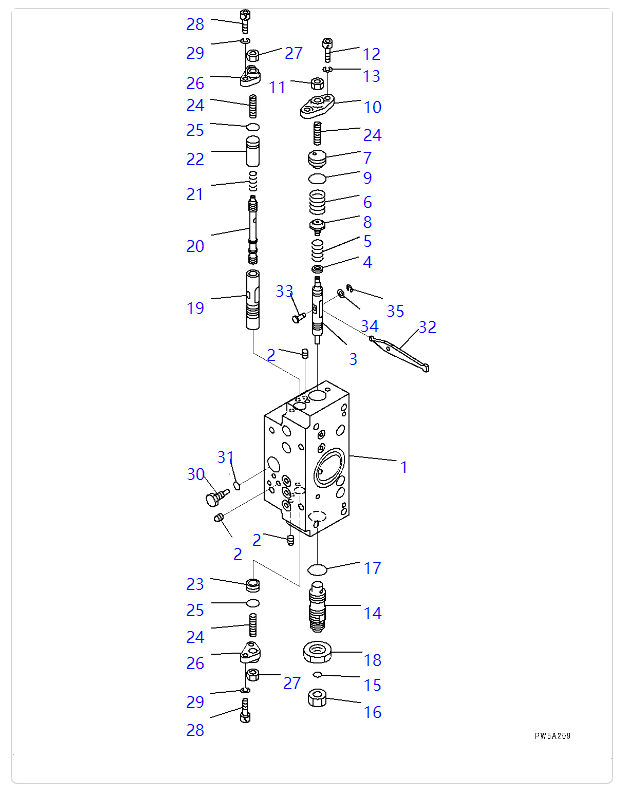

PC1250-8 (7)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85160 [1] Conjunto da válvula, servo, Komatsu frontal 13.401 kg.

[ 'SN: 30158-up '] | $ 2.

708-25-85360 [1] Submontagem da válvula, servo, front komatsu 6 kg.

[ 'SN: 30158-up '] | $ 3.

708-25-00830 [1] Montagem corporal Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
3. 708-25-15120 [1] Pistão Komatsu 0,055 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 708-25-15130 [1] Seat Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-25-25130 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 708-25-55250 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
7. 708-23-15120 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 708-23-15160 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 07000-B2018 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-25-15150 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 01580-10806 [1] Nut Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801920104 ']
12. 01252-60616 [2] Bolt, soquete hexagon Komatsu 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230616 ']
13. 01602-20619 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150506 ']
14. 708-25-55680 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 02896-61009 [1] O-ring Komatsu 0,14 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 02789-00315 [1] Plug, cap komatsu 0,05 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
17. 07002-62034 [1] O-ring Komatsu 0,94 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 07239-12009 [1] Nut Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0723902009 ', '0723922009 ']
19. 708-25-15180 [1] Manga komatsu 0,055 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 708-25-15280 [1] Spool Komatsu 0,03 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-25-15310 [1] Spring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 708-25-15330 [1] Spacer Komatsu 0,052 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
23. 708-25-15430 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
24. 708-25-15340 [3] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
25. 07000-B2012 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 708-25-15250 [2] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
30. 708-25-15260 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
31. 07002-60823 [1] O-ring Komatsu 0,18 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
32. 708-25-15270 [1] Arm Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
33. 708-25-15360 [1] Pin Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
34. 708-25-15370 [1] Lavadora Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
35. 708-25-15380 [1] E-Ring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']

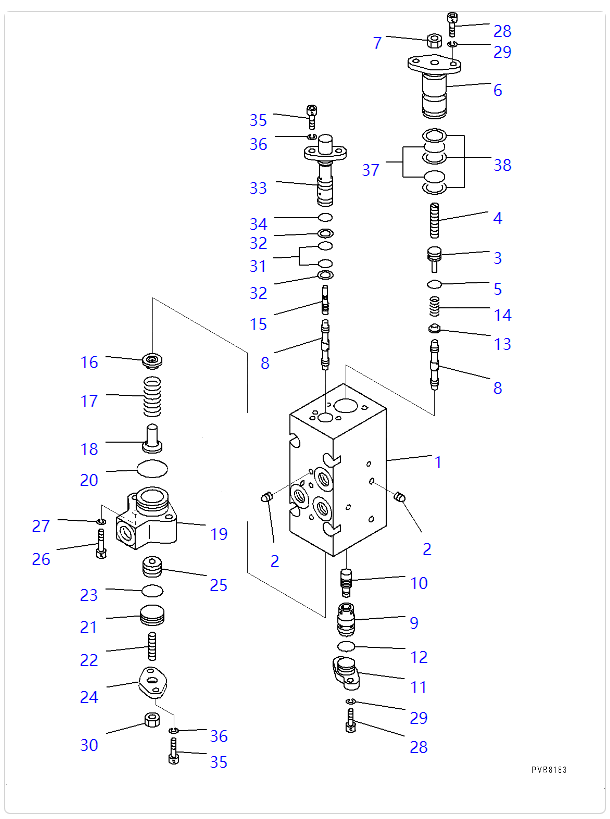

PC1250-8 (8)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85160 [1] Conjunto da válvula, servo, Komatsu frontal 13.401 kg.

[ 'SN: 30158-up '] | $ 2.

708-25-09581 [1] Conjunto da válvula, Co+NC Komatsu China

[ 'SN: 30158-up '] Analogs: [ '7082509580 '] | $ 3.

708-23-00430 [1] Conjunto do corpo Komatsu 5,38 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
3. 708-25-17460 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 708-25-17430 [1] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 07000-B2010 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L25990 ']
6. 708-25-17131 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082517130 ']
7. 01580-10806 [1] Nut Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801920104 ']
8. 708-25-17141 [2] Spool Komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 708-25-17150 [1] Manga komatsu 0,032 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-25-17160 [1] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 708-25-17170 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
12. 07000-B2014 [1] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 708-25-17180 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 708-25-17690 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 708-25-17220 [1] Pistão Komatsu 0,009 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 708-25-17370 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082517240 ']
17. 708-25-17250 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 708-25-17470 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
19. 708-23-17290 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 07000-B3028 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-25-17380 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 708-25-15340 [1] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
23. 07000-B2021 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
24. 708-23-17240 [1] Cubra Komatsu 0,046 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
25. 708-25-17480 [1] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 01252-60630 [2] Bolt, soquete hexagon Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125240630 ']
27. 01602-20619 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150506 ']
28. 01252-60616 [4] Bolt, soquete hexagon Komatsu 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230616 ']
31. 07000-B2012 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
32. 07001-02012 [2] Anel, backup Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
33. 708-25-17451 [1] Manga Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
38. 07001-02021 [3] Anel, backup Komatsu 0,061 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

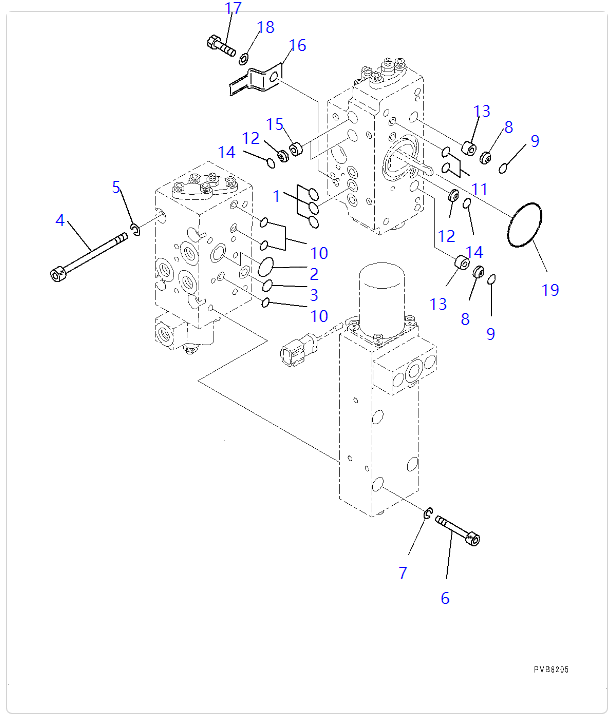

PC1250-8 (9)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85160 [1] Conjunto da válvula, servo, Komatsu frontal 13.401 kg.

[ 'SN: 30158-up '] | $ 2.
1. 07000-B2011 [2] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
2. 708-25-19160 [4] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-up ']
3. 01602-20825 [4] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-up '] Analogs: [ '0160200825 ', '0231011020 ', '6124613790 ']
4. 708-2L-25480 [4] Filtre o Komatsu OEM 0,5 kg.

[ 'SN: 30158-up ']
5. 708-2L-25490 [4] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
6. 07000-B1009 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-up '] Analogs: [ '7082L23910 ']
7. 708-25-19230 [2] Orifício Komatsu China

[ 'SN: 30158-up ']
8. 07000-B3048 [1] O-ring Komatsu 0,002 kg.

[ 'SN: 30158-up ']
9. 708-25-19240 [1] Orifício Komatsu China

[ 'SN: 30158-up ']

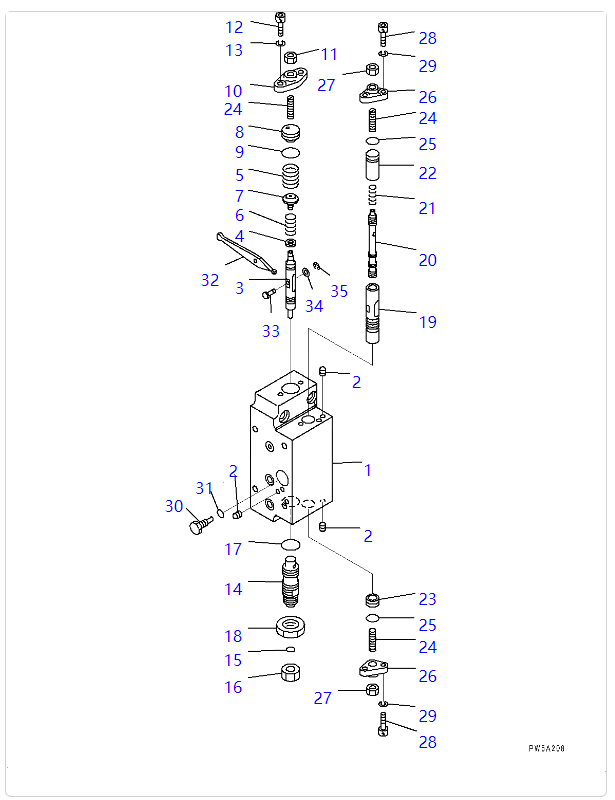

PC1250-8 (10)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85260 [1] Conjunto da válvula, servo, komatsu traseiro 20.401 kg.

[ 'SN: 30158-up '] | $ 2.

708-25-85460 [1] Submontagem da válvula, servo, komatsu traseiro 6 kg.

[ 'SN: 30158-up '] | $ 3.

708-25-00840 [1] Montagem corporal Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
3. 708-25-15120 [1] Pistão Komatsu 0,055 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 708-25-15130 [1] Seat Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-25-55250 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 708-25-25130 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
7. 708-23-15160 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 708-23-15120 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 07000-B2018 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-25-15150 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 01580-10806 [1] Nut Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801920104 ']
12. 01252-60616 [2] Bolt, soquete hexagon Komatsu 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230616 ']
13. 01602-20619 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150506 ']
14. 708-25-55680 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 02896-61009 [1] O-ring Komatsu 0,14 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 02789-00315 [1] Plug, cap komatsu 0,05 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
17. 07002-62034 [1] O-ring Komatsu 0,94 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 07239-12009 [1] Nut Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0723902009 ', '0723922009 ']
19. 708-25-15180 [1] Manga komatsu 0,055 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 708-25-15280 [1] Spool Komatsu 0,03 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-25-15310 [1] Spring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 708-25-15330 [1] Spacer Komatsu 0,052 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
23. 708-25-15430 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
24. 708-25-15340 [3] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
25. 07000-B2012 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 708-25-15250 [2] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
30. 708-25-15260 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
31. 07002-60823 [1] O-ring Komatsu 0,18 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
32. 708-25-15270 [1] Arm Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
33. 708-25-15360 [1] Pin Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
34. 708-25-15370 [1] Lavadora Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
35. 708-25-15380 [1] E-Ring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
~!phoenix_varIMG1192!~

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85260 [1] Conjunto da válvula, servo, komatsu traseiro 20.401 kg.

[ 'SN: 30158-up '] | $ 2.

708-25-09681 [1] Conjunto da válvula, Co+NC Komatsu China

[ 'SN: 30158-up '] Analogs: [ '7082509680 '] | $ 3.

708-23-00441 [1] Montagem corporal Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
3. 708-25-17460 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
4. 708-25-17430 [1] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 07000-B2010 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082L25990 ']
6. 708-25-17131 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082517130 ']
7. 01580-10806 [1] Nut Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801920104 ']
8. 708-25-17141 [2] Spool Komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 708-25-17150 [1] Manga komatsu 0,032 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-25-17160 [1] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 708-25-17170 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
12. 07000-B2014 [1] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 708-25-17180 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 708-25-17690 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 708-25-17220 [1] Pistão Komatsu 0,009 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 708-25-17370 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7082517240 ']
17. 708-25-17250 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
18. 708-25-17470 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
19. 708-23-17290 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 07000-B3028 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 708-25-17380 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
22. 708-25-15340 [1] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
23. 07000-B2021 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
24. 708-23-17240 [1] Cubra Komatsu 0,046 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
25. 708-25-17480 [1] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 01252-60630 [2] Bolt, soquete hexagon Komatsu 0,01 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125240630 ']
27. 01602-20619 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150506 ']
28. 01252-60616 [4] Bolt, soquete hexagon Komatsu 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230616 ']
31. 07000-B2012 [2] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
32. 07001-02012 [2] Anel, backup Komatsu 0,002 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
33. 708-25-17451 [1] Manga Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
38. 07001-02021 [4] Anel, backup Komatsu 0,061 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']

PC1250-8 (12)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85260 [1] Conjunto da válvula, servo, komatsu traseiro 20.401 kg.

[ 'SN: 30158-up '] | $ 2.

708-25-85760 [1] Conjunto da válvula Komatsu China

[ 'SN: 30158-up '] | $ 3.

708-25-00850 [1] Conjunto do corpo Komatsu 0,000 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] | $ 4.
4. 708-23-18120 [1] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
5. 708-23-18130 [1] Manga Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
6. 708-27-18240 [3] Pistão Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
7. 708-27-18250 [3] Manga Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
8. 07000-B2016 [6] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
9. 07001-02016 [6] Anel, backup Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
10. 708-23-18161 [1] Spool Komatsu 0,045 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
11. 708-23-18170 [1] Seat Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
12. 708-23-18181 [1] Spring Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 708-23-15160 [1] Plugue Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 708-25-15340 [1] Enfute Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 07000-B2018 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
16. 708-23-18210 [1] Cubra Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
17. 01580-10806 [1] Nut Komatsu 0,005 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '801920104 ']
18. 708-2L-25190 [1] Montagem solenóide Komatsu 0,84 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
20. 708-23-18250 [4] Parafuso komatsu 0,02 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
21. 01252-60616 [2] Bolt, soquete hexagon Komatsu 0,007 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230616 ']
22. 01602-20619 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '802150506 ']
23. 708-2L-25480 [1] Filtre o Komatsu OEM 0,5 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
24. 708-2L-25490 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
25. 708-25-58310 [1] Flange Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
26. 01252-60830 [2] Bolt, soquete hexagon Komatsu 0,019 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0125230830 ']
27. 01602-20825 [2] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '0160200825 ', '0231011020 ', '6124613790 ']

PC1250-8 (13)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

708-25-85260 [1] Conjunto da válvula, servo, komatsu traseiro 20.401 kg.

[ 'SN: 30158-up '] | $ 2.
1. 07000-B2011 [3] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
2. 07000-B2018 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
4. 708-25-19160 [4] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-up ']
5. 01602-20825 [4] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-up '] Analogs: [ '0160200825 ', '0231011020 ', '6124613790 ']
6. 01252-60850 [4] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-up '] Analogs: [ '0125270850 ']
8. 708-2L-25480 [2] Filtre o Komatsu OEM 0,5 kg.

[ 'SN: 30158-up ']
9. 708-2L-25490 [2] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
10. 07000-B1009 [3] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-up '] Analogs: [ '7082L23910 ']
13. 708-25-19230 [2] Orifício Komatsu China

[ 'SN: 30158-up ']
15. 708-25-19240 [2] Orifício Komatsu China

[ 'SN: 30158-up ']
16. 08193-21012 [1] Clip Komatsu 0,011 kg.

[ 'SN: 30158-up ']
17. 01010-80812 [1] Parafuso komatsu 0,01 kg.

[ 'SN: 30158-up ']
18. 01643-30823 [1] Lavadora Komatsu 0,004 kg.

['SN: 30158-UP'] analogs:['802070008', '802150008', '0160510818', '0164310823', '802170001', '01643A0823']
19. 07000-B3048 [1] O-ring Komatsu 0,002 kg.

[ 'SN: 30158-up ']

PC1250-8 (14)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.
1. 01252-60850 [8] Bolt, soquete hexágono Komatsu China

[ 'SN: 30158-up '] Analogs: [ '0125270850 ']
2. 01602-20825 [8] Lavadora Komatsu 0,004 kg.

[ 'SN: 30158-up '] Analogs: [ '0160200825 ', '0231011020 ', '6124613790 ']
3. 04020-00616 [4] Pin, Dowel Komatsu 0,004 kg.

[ 'SN: 30158-up ']
4. 706-46-53180 [2] Parafuso komatsu 0,028 kg.

[ 'SN: 30158-up ']
5. 706-46-53260 [2] Plugue komatsu 0,03 kg.

[ 'SN: 30158-up ']
6. 07002-61423 [2] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up '] Analogs: [ '7082L23950 ']
7. 708-25-19140 [1] Tube Komatsu 0,15 kg.

[ 'SN: 30158-up ']
8. 07000-B2012 [4] O-ring Komatsu China 0,001 kg.

[ 'SN: 30158-up ']
9. 708-25-19120 [1] Flange Komatsu China

[ 'SN: 30158-up ']
10. 07000-B2021 [1] O-ring Komatsu 0,001 kg.

[ 'SN: 30158-up ']
11. 720-68-15240 [1] Filtre komatsu 0,003 kg.

[ 'SN: 30158-up ']
12. 01010-80820 [2] Parafuso komatsu 0,013 kg.

[ 'SN: 30158-up '] Analogs: [ '801014067 ', '0101050820 ', '801015086 ']

PC1250-8 (15)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.
1. 708-45-12330 [1] Cubra Komatsu 2,84 kg.

[ 'SN: 30158-up ']
2. 07000-B2120 [1] O-ring Komatsu 0,004 kg.

[ 'SN: 30158-up ']
3. 01010-81050 [4] Parafuso komatsu 0,038 kg.

[ 'SN: 30158-up '] Analogs: [ '801015559 ', '0101051050 ']
4. 01643-31032 [4] Lavadora Komatsu 0,054 kg.

[ 'SN: 30158-up '] Analogs: [ '802150510 ', '0164331030 ', '0164381032 ', '0164371032 ', '01431022 ' ', ' '0143102222222222222222222222222221' '0164301032 ', '6127212530 ', '802170002 ', 'r016431032 ']
5. 07000-B2085 [1] O-ring Komatsu 0,003 kg.

[ 'SN: 30158-up ']
6. 708-45-12810 [1] Chefe Komatsu China

[ 'SN: 30158-up ']
7. 708-45-12820 [1] Collar Komatsu China

[ 'SN: 30158-up ']
8. 708-45-12830 [1] Anel Komatsu China

[ 'SN: 30158-up ']
9. 01010-81030 [2] Parafuso Komatsu OEM 0,03 kg.

[ 'SN: 30158-up '] Analogs: [ '801015110 ', 'm0 18011000306 ', 'ym26116100302 ', '0101051030 ']

PC1250-8 (16)

Peças no grupo:

POS. Parte No Qtty Peças Nome Comentários

708-2L-00681 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30254-up '] Analogs: [ '7082L00680 '] | $ 0.

708-2L-00680 [1] Conjunto da bomba Komatsu 196 kg.

[ 'SN: 30158-30253 ', 'SCC: A1 '] Analogs: [ '7082L00681 '] | $ 1.

705-11-23040 [1] Montagem da bomba Komatsu China

[ 'SN: 30158-up '] | $ 2.
1. 705-17-01010 [1] Assembléia de suporte Komatsu China

[ 'SN: 30158-UP ', 'SCC: C2 ']
2. 705-17-01350 [2] Bucha, avião, avião Komatsu 0,016 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7051701351 ']
3. 705-17-01120 [1] Montagem da capa Komatsu 1,025 kg.

[ 'SN: 30158-UP ', 'SCC: C2 '] Analogs: [ '7051701121 ']
5. 705-17-01610 [2] Placa, Komatsu lateral 0,16 kg.

[ 'SN: 30158-up ']
6. 705-67-01440 [2] Anel, backup Komatsu 0,004 kg.

[ 'SN: 30158-up '] Analogs: [ '7051701440 ']
7. 705-67-01470 [2] Anel, sele komatsu 0,024 kg.

[ 'SN: 30158-up '] Analogs: [ '7051701470 ']
8. 705-67-01380 [2] O-ring Komatsu 0,1 kg.

[ 'SN: 30158-up ']
9. 705-17-01870 [1] Placa Komatsu 0,01 kg.

[ 'SN: 30158-up ']
10. 07430-71360 [1] Selo, oleagismo komatsu 0,033 kg.

[ 'SN: 30158-up ']
11. 04065-03515 [1] Toque, Snap Komatsu 0,003 kg.

[ 'SN: 30158-up ']
12. 705-17-23010 [1] Caso, Gear Komatsu 0,67 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
13. 705-17-23410 [1] Equipamento, dirija Komatsu 0,39 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
14. 705-17-23510 [1] Equipamento, Komatsu acionado 0,29 kg.

[ 'SN: 30158-UP ', 'SCC: C2 ']
15. 04020-00820 [4] Pin, Dowel Komatsu 0,056 kg.

[ 'SN: 30158-up '] Analogs: [ '802540092 ']
16. 01252-61280 [4] Bolt, soquete hexagon Komatsu 0,088 kg.

[ 'SN: 30158-up '] Analogs: [ '7051702730 ']
17. 01643-51232 [4] Lavadora Komatsu 0,024 kg.

[ 'SN: 30158-up ']


Informatio  da empresa


1 (2)
em um:
sob um:
PC1250-8 Bomba principal 708-2L-00680 708-2L-00681 PC1250-8 Bomba principal hidráulica

Categoria de produto

produtos relacionados

JCB220 JS200 JS210 JS220 20/925309 Bomba hidráulica JCB220 Bomba principal para escavadeira JCB
JCB220 JS200 JS210 JS220 20/925309 Bomba hidráulica JCB220 Bomba principal para escavadeira JCB
ZX160 BOMBRA HIDRÁULICA ASSY 4441981 A8V080 ZX160 BOMBA PRINCIPAL PARA ESCAVAÇÃO DE HITACHI
ZX160 BOMBRA HIDRÁULICA ASSY 4441981 A8V080 ZX160 BOMBA PRINCIPAL PARA ESCAVAÇÃO DE HITACHI
PC220-8 Bomba hidráulica Assy 708-2L-00790 PC220-8 Bomba principal para a escavadeira de Komatsu
PC220-8 Bomba hidráulica Assy 708-2L-00790 PC220-8 Bomba principal para a escavadeira de Komatsu
E374F E390F Bomba principal 369-9655 576-3072 Bomba principal hidráulica para escavadeira de gato
E374F E390F Bomba principal 369-9655 576-3072 Bomba principal hidráulica para escavadeira de gato
E336D2 Bomba principal 504-5477 K5V160DP E336D2 Bomba hidráulica Aplicar para escavadeira de gato
E336D2 Bomba principal 504-5477 K5V160DP E336D2 Bomba hidráulica Aplicar para escavadeira de gato
Bomba principal hidráulica E330D 283-6116 K5V160DP E330 Bomba principal para escavadeira de gato
Bomba principal hidráulica E330D 283-6116 K5V160DP E330 Bomba principal para escavadeira de gato
E320C 320D Bomba principal 173-3381 272-6955 SBS120 320C Bomba hidráulica para escavadeira de gato
E320C 320D Bomba principal 173-3381 272-6955 SBS120 320C Bomba hidráulica para escavadeira de gato
Bomba principal hidráulica DX420 K1003280B K1000288B 401-00255 BOMBA PRINCIPAL DX420 PAR
Bomba principal hidráulica DX420 K1003280B K1000288B 401-00255 BOMBA PRINCIPAL DX420 PAR
PC300-8 PC350-8 Bomba principal 708-2G-00150 PC350-8 Bomba hidráulica para escavadeira de Komatsu
PC300-8 PC350-8 Bomba principal 708-2G-00150 PC350-8 Bomba hidráulica para escavadeira de Komatsu
R320-9 R380-9 BOMBA PRINCIPAL K3V180DTP-9N-17т 31Q9-10010 R330-9 BOMBA PRINCIPAL
R320-9 R380-9 BOMBA PRINCIPAL K3V180DTP-9N-17т 31Q9-10010 R330-9 BOMBA PRINCIPAL

Ligue para nós agora

Linha fixo: +86-750-6688281
Telefone: +86-13392072868
Telefone: +86-13302589039

Envie uma mensagem

E-mail: 3382901943@qq.com

Escritório principal

Especializado em produto
7*24 horas ao seu serviço
LB é um dos principais fabricantes e fornecedores de componentes de máquinas em movimento: redutores de viagens e redutores de balanço.

Links úteis

Inscreva -se agora

Incorrect Postcode apresentar
Copyright © 2022 LB All rights reserved. Sitemap Support By Leadong   粤 icp 备 2022033046 号
